Civil Engineering

Drainage

Adoptable and private drainage installed and tested by our own crew. We handle the S.104 agreement process, CCTV survey pack and as-built drainage drawings from one contract.

Deep benched excavation with a narrow pipe trench cut into the formation

Capabilities

What we self-deliver.

S.104 adoptable sewers

Design, lay and test foul and surface drainage to the Water UK Design and Construction Guidance, and to the adopting water company's addenda. We manage CCTV surveys, air testing and the Section 104 agreement process.

Deep drainage

Drainage installations to 3 m+ depth with shoring, proprietary support systems and dewatering. Benched and haunched to specification.

SuDS and attenuation

Attenuation tanks, crates, swales, soakaways and infiltration basins designed to hydraulic engineer specification and installed to programme.

Manholes and inspection chambers

Precast concrete manholes and brick-built inspection chambers to WRc specification. Benching, backdrop connections and step irons where required.

Pumping stations

Excavation, installation and commissioning of packaged sewage pumping stations. CDM-compliant confined-space procedures throughout.

Earlier work

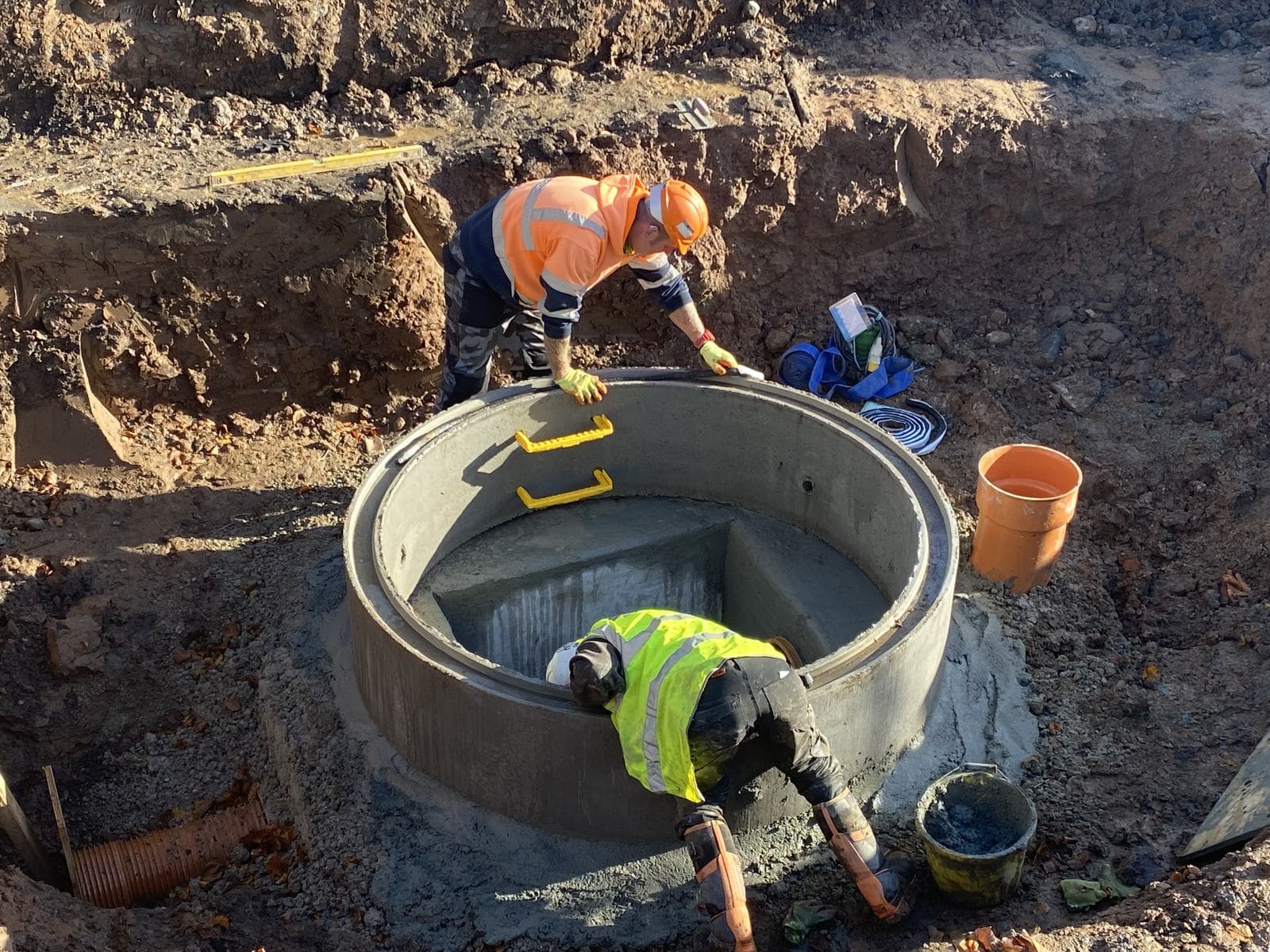

Precast concrete manhole chamber being benched and finished in an open excavation. October 2022, before Axora was formed: earlier work by the founders.

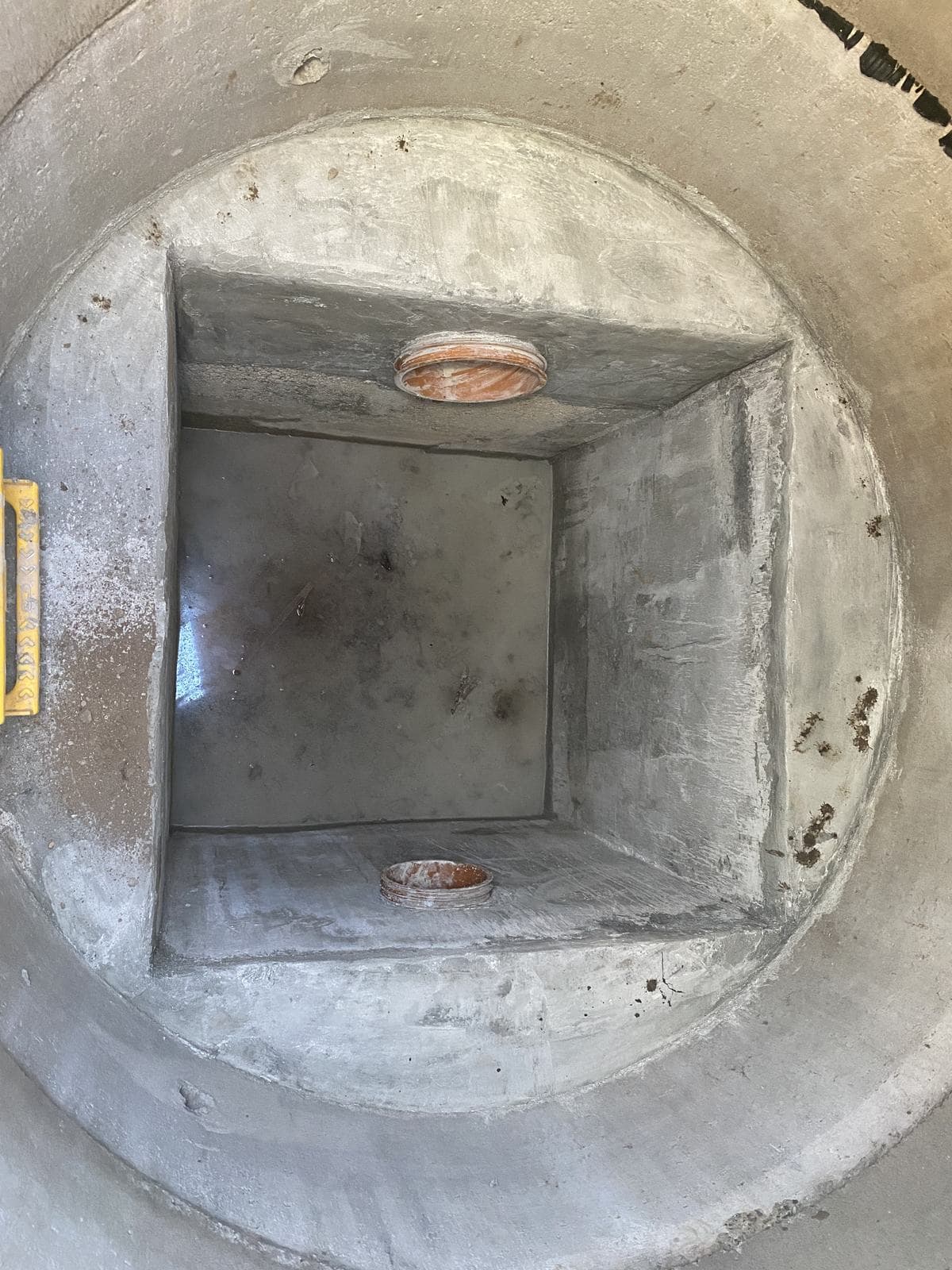

Benching and channel detail formed inside a precast manhole chamber. October 2022, before Axora was formed: earlier work by the founders.

Typical sequence

How it runs on an Axora site.

STEP 01

Setting out, excavation and trench support

STEP 02

Pipe laying, jointing and haunching to spec

STEP 03

Manhole or chamber construction

STEP 04

Air test and water test

STEP 05

CCTV survey and defect resolution

STEP 06

As-built drainage survey submitted
